Ford F-150 Fuel Pump Replacement

1997 - 2003 F-150 In-tank Fuel Pump Replacement

A fuel pump is a normal wear item that will inevitably fail at some point in time. Signs of a failing fuel pump include hard start condition, rough idle, engine stalling, no start condition, and engine cutting out under load. On the Ford F-150, the pump is not particularly difficult to replace; the challenge is getting to it. Unlike some vehicle types, pickup owners have the option of dropping the fuel tank or removing the bed in order to access the fuel pump. In either instance, a set of extra hands greatly simplifies the process.

Dropping the Fuel Tank vs. Removing Bed for Fuel Pump Removal

Either the fuel tank or the pickup bed must be removed to access the fuel pump, which enters the fuel tank through the top. There are arguments for and against both methods, but we opted to remove the bed since 1) we had the means to, 2) we wanted to avoid emptying and storing a full tank of gasoline, and 3) we consider working from the top more convenient than working from underneath the truck. There is nothing inherently wrong with either method, although corroded bed bolts may prevent you from selecting this option. If you choose to drop the fuel tank, it may be wise to replace the fuel tank straps, which have historically been the source of controversy due to corrosion.

F-150 Bed Removal

The pickup bed is secured by (6) T50 Torx bolts (size may vary by model year). If applicable, remove the bed liner followed by the (6) bed bolts. The bolts should have locking tabs that eliminate the need hold the nuts beneath the bed. Next, disconnect the wiring for the tail and license plate light assemblies - trace the wires and you'll find connectors for both. Carefully tuck/position the wiring harnesses such that they won't catch on the frame when the bed is removed. Remove the fuel filler cap and strap that secures the filler neck to the bed. Finally lift the bed and remove, or lift and slide it back so that you can see the fuel pump assembly protruding from the top of the fuel tank.


Click any thumbnail to view high resolution fullsize image w/ addition details (where applicable)

Pickup bed removal

• We opted to remove the bed as opposed to dropping the fuel tank. The bed is held down by six T50 torx bolts - start by removing these bolts.

• Next, you'll need to disconnect the wiring for the tail lights and license plate lights. Trace the wiring and disconnect the plugs for both. The exact locations may vary, but we had to disconnect three plugs, all located near the rear bumper.

• Remove the fuel tank cap, filler neck strap, and filler neck mounting hardware so that it is no longer attached to the bed.

Fuel pump removal from fuel tank

• To lift the bed, we attached tow straps to all four corners and lifted it with a chain hoist hanging from the rafters of the shop, then drove the truck forward.

• With the bed removed and the truck off, disconnect the negative battery cable before proceeding.

• The new fuel pump has an arrow etched into the top cover (red arrow in photo). Mark this arrows location on the tank using a marker so that the new fuel pump is aligned exactly the same as the old one once it is installed.

Disconnecting fuel lines from pump assembly

• Remove the (6) hex bolts that secure the fuel pump assembly and disconnect the electrical connector for the fuel pump.

• Remove the two fuel lines from the fuel pump assembly - a flat head screwdriver will help with the retaining clips if they don't want to cooperate.

Removing pump assembly

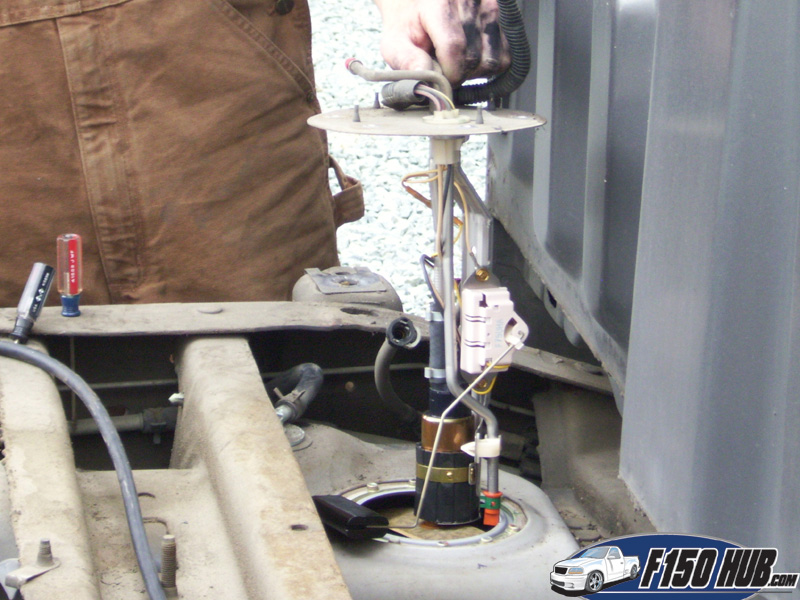

• Carefully extract the old fuel pump assembly from the tank. Remove the old gasket if it did not come out with the pump.

• Install the new gasket and fuel pump assembly opposite removal. A light coating of silicon lubricant can be applied to the new gasket to ensure a positive seal. Make sure the arrows on the fuel pump and tank line up, then reinstall the mounting bolts.

New fuel pump installed

• Connect the fuel lines to the new fuel pump assembly, and then the electrical connector. Reconnect the negative battery cable.

• Reinstall the bed or tank and test the new fuel pump. It's normal for the truck to turn over more than usual during this first start as air is being purged from the fuel line. We recommend cycling the keys to the "run" position several times for 10 seconds at a time prior to cranking the engine over.
